Multicast, Live TV streaming
Suited to a range of demanding commercial applications
Site-wide multicast streaming
Allow unlimited simultaneous computers to access digital TV by streaming multicast UDP or RTP digital video from antenna or unencrypted cable. Windows viewing using Windows Media Player or multi-platform viewing using VLC.
Digital broadcast diagnostics troubleshooting
The SiliconDust TECH provides RF diagnostics including signal strength, SNR, and constellation plots. For stream diagnostics use the SiliconDust TECH with TSReader for breakdown of bitrates, programs, and tables.
Head-end monitoring
The SiliconDust TECH can be command-line scripted for use with always-on monitoring applications. Command line utility compatible with Windows, Mac, Linux, and Solaris.
Customized commercial applications
The SiliconDust TECH can be controlled by C library code for a wide range of customized applications.
TECH5-16US-4X4
Features
- 19” Rackmount
- TECH5-16US draws signal from 4 antennas for better signal resilience and greater channel range access
- High tuner density
- Multicast streaming
- Constellation plot display
- Compatible with TS Reader for stream analysis
- dBmV signal level display
- dB signal quality (MER) display
- Configurable TTL
- Static Channel/target/IP configuration
- Scriptable from Windows, OSX, Linux, *BSD, Solaris
- Multiple transport streams- (one transport stream per tuner)
- Hardware PID filtering
- 2 year warranty
Multicast Digital UDP or RTP Streaming
- Cross platform support
- Static Channel mapping
- Broadcast Signal Diagnostics and Monitoring
- Multicast UDP/RTP compatible set-top boxes
Multicast
- Windows Media Player plugin for Windows: URL or favorites based multicast selection
- VideoLAN VLC for Windows/Mac/Linux: URL or favorites based multicast selection
Regional Specifications:
- Model: TECH5-16US
- 16 tuners
- ATSC 1.0, QAM256/64 Annex B
Overview
- Enterprise site-wide multicast streaming
- Digital broadcast diagnostics/troubleshooting
- Head-end monitoring
- Customized commercial applications
- 44MHz to 1002MHz tuning range
- 6MHz Chanel bandwidth
- 2 year warranty
Application
- IPTV unicasting, multicasting, streaming
- Streaming to designated video clients. VLC or Windows Media Player
- Config GUI

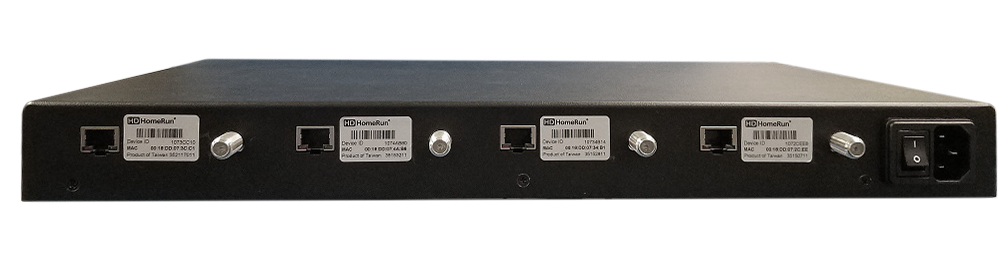

Connectors
- 1 x Power
- 4 x RF
- 4 x Ethernet port
Upgrade to our DVR service and watch, record and replay your favorite TV around your home. It really is TV on your terms.
TECH5-4K8-2X4
Features
- 19” Rackmount
- TECH5-8US draws signal from 4 antennas for better signal resilience and greater channel range access
- High tuner density
- Multicast streaming
- Constellation plot display
- Compatible with TS Reader for stream analysis
- dBmV signal level display
- dB signal quality (MER) display
- Configurable TTL
- Static Channel/target/IP configuration
- Scriptable from Windows, OSX, Linux, *BSD, Solaris
- Multiple transport streams- (one transport stream per tuner)
- Hardware PID filtering
- 2 year warranty
Multicast Digital UDP or RTP Streaming
- Cross platform support
- Static Channel mapping
- Broadcast Signal Diagnostics and Monitoring
- Multicast UDP/RTP compatible set-top boxes
Multicast
- Windows Media Player plugin for Windows: URL or favorites based multicast selection
- VideoLAN VLC for Windows/Mac/Linux: URL or favorites based multicast selection
Regional Specifications:
- Model: TECH5-4K8
- 8 tuners
- ATSC 3.0, ATSC 1.0, QAM256/64 Annex B
Overview
- Enterprise site-wide multicast streaming
- Digital broadcast diagnostics/troubleshooting
- Head-end monitoring
- Customized commercial applications
- 44MHz to 1002MHz tuning range
- 6MHz Chanel bandwidth
- 2 year warranty
Application
- IPTV unicasting, multicasting, streaming
- Streaming to designated video clients. VLC or Windows Media Player
- Config GUI
Connectors
- 1 x Power
- 4 x RF
- 4 x Ethernet port
Upgrade to our DVR service and watch, record and replay your favorite TV around your home. It really is TV on your terms.
Educational institutions
We have supported hundreds of schools, school districts, and universities to deliver TV to classrooms and dorm rooms.
Corporate Environments
Investment firms, stock companies and small offices.
Hospitality locations
Including Ace Hotels locations in Los Angeles, NYC, and Palm Springs. High-end boutique hotel with an average oc- cupancy rate of 90%.
Multi-Dwelling Units (MDU)
For use in distribution of signal to multiple dwellings or rooms through the internal network.
Health clubs and Gyms
Medical Offices and Waiting Rooms
Other applications include:
- Television Broadcast Outlets
- Head End Diagnostics
- Remote Site Monitoring
- Low Cost Field Technician Solution
| TECH5-4K | TECH5-4K8-2X4 | TECH5-16US-4X4 | |
| Form Factor | Compact 3.8"x3.8" | 1RU | 1RU |
| No. of Tuners | 4 (2 ATSC 3.0) | 8 | 16 |
| Signal Type | ATSC 3.0 & 1.0 CLEAR QAM | ATSC 3.0 & 1.0 CLEAR QAM | ATSC 1.0 CLEAR QAM |
| Multicast Streaming | ✓ | ✓ | ✓ |
| Signal Monitoring | ✓ | ✓ | ✓ |
| Remote Site Monitoring | ✓ | ✓ | ✓ |
| Static Channel Mapping | ✓ | ✓ | ✓ |
| Power Supply | Wall adapter | Built-in | Built-in |
